Doppler Ultrasonic Flowmeter

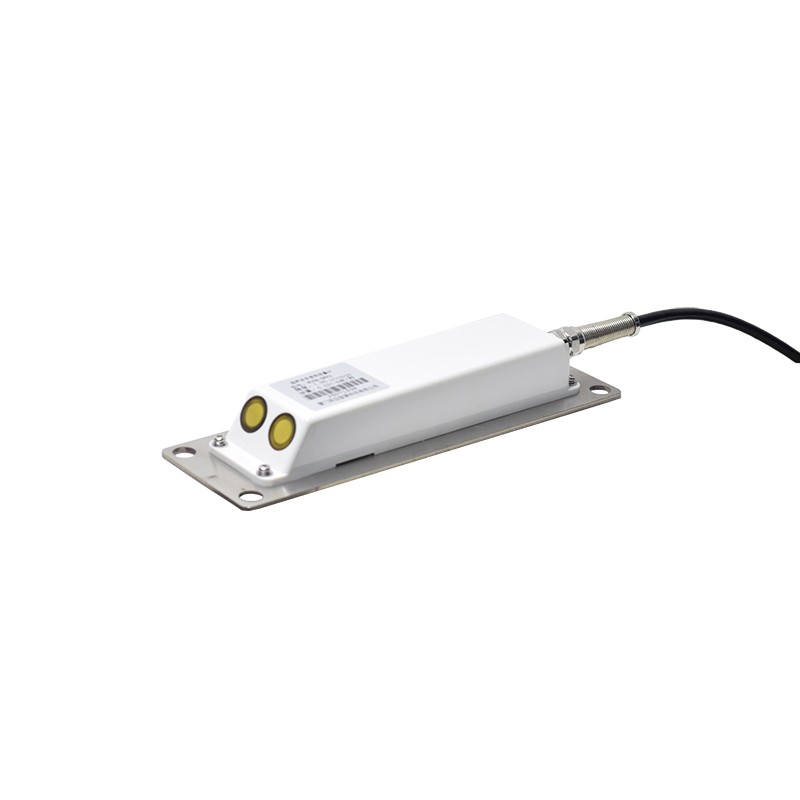

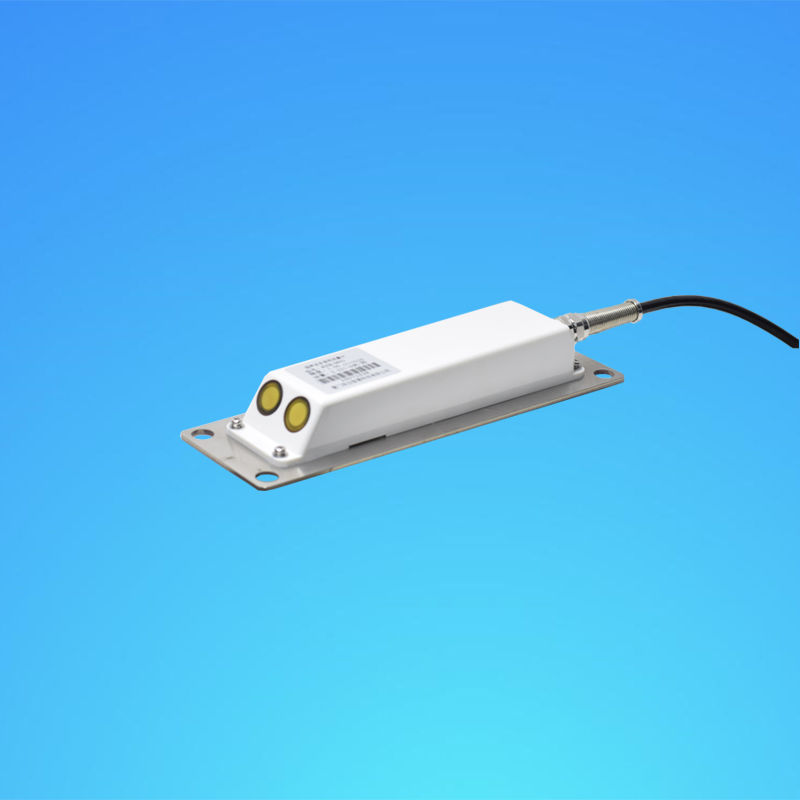

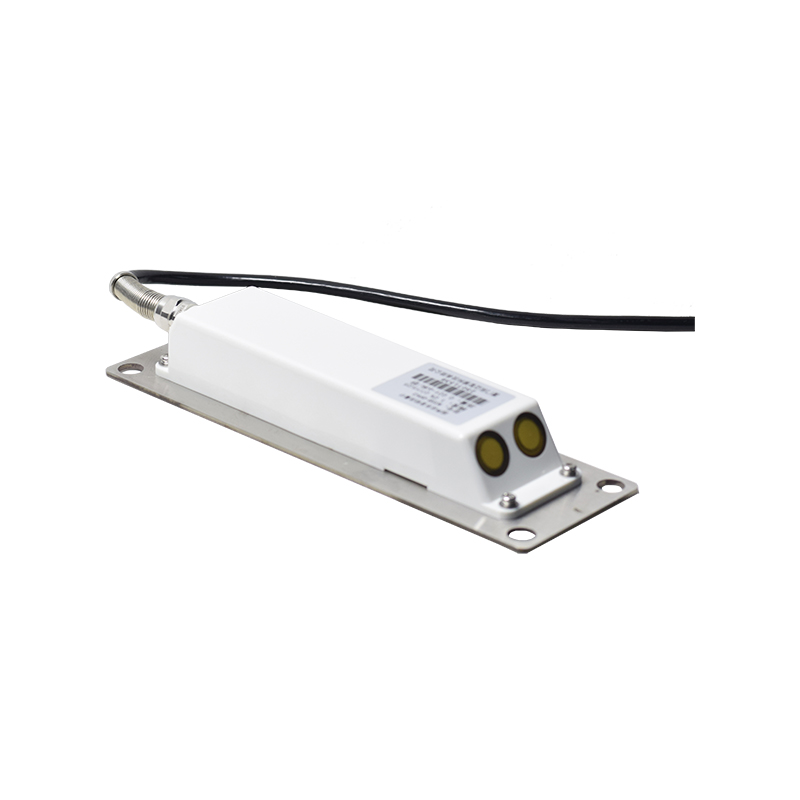

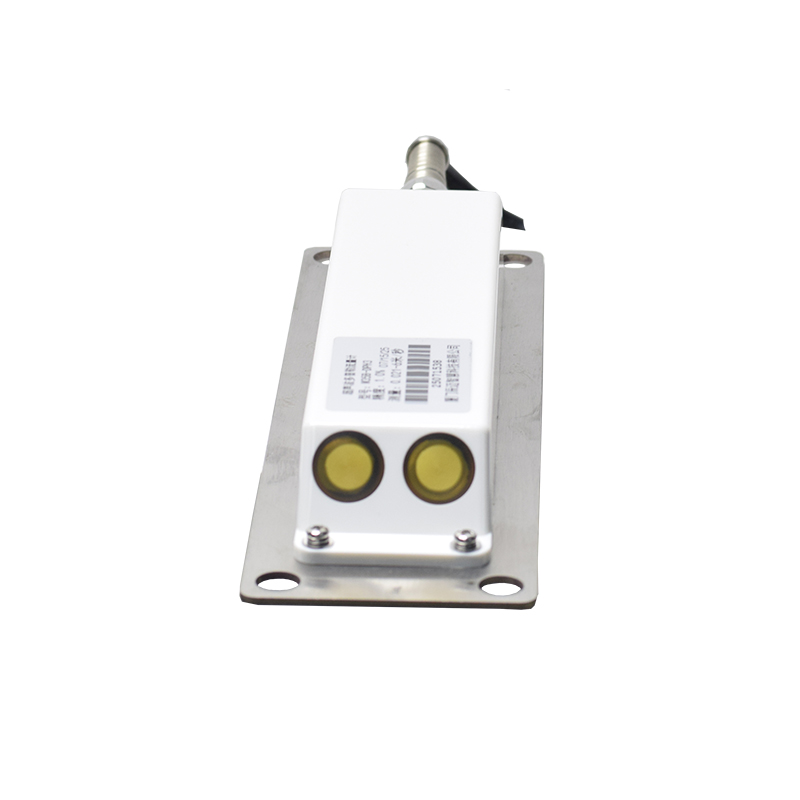

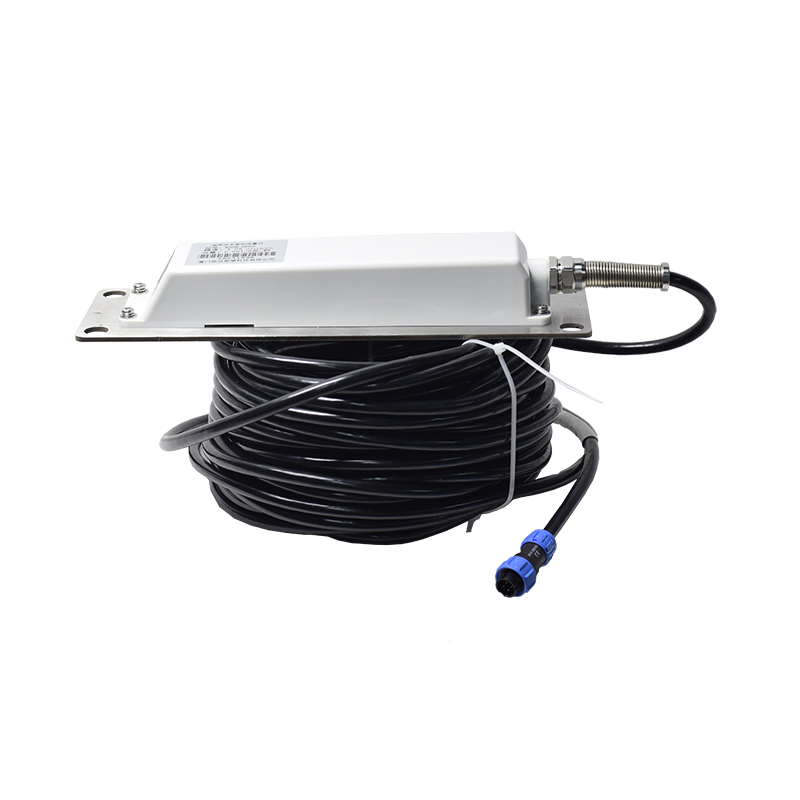

Doppler ultrasonic flowmeter

The Doppler Pipeline Flow Meter is a cost-effective contact-type flow measurement sensor that integrates ultrasonic Doppler technology, signal processing algorithms, and automatic flow calculation for various cross-sections. Currently, it is mainly applied to the online automatic flow monitoring of urban drainage pipe networks, and is particularly suitable for fluid flow measurement scenarios with turbidity greater than 20mg/L. It provides accurate flow data for drainage pipe network flow simulation and verification, waterlogging simulation, and drainage pipe network maintenance.

Features:

1. Wall-mounted integrated design for quick installation

2. Built-in surface velocity to point velocity mapping algorithm

3. Bidirectional flow velocity measurement (forward and reverse)

4. RS485 interface with standard ModBus protocol

5. Unique structural design to resist silting and clogging

6. Adjustable and controllable transmission logic for low power consumption

7. Integrated measurement of flow velocity and water level
