From 2012 to 2019, a total of 702,000 electrical fires occurred across the country, accounting for more than 30% of the total number of fires nationwide. Therefore, it is urgent to strengthen electrical safety and fire safety management.
Chenmai Smart Fire IoT Cloud Service Platform can realize functions such as fire hazard inspection, remote control, and precise positioning. It targets places with many electrical equipment and large power consumption, such as industrial enterprises, entertainment venues, and commercial streets, to detect and solve electrical safety accidents early, effectively reducing the risk of electrical fires.
The smart electrical safety monitoring system series products under Chenmai Smart Fire Cloud Platform can conduct real-time monitoring, alarming, and recording of electrical faults in the power distribution system, such as residual current excess, short circuit, over-temperature, and fault arc. Meanwhile, the products are equipped with strong anti-electromagnetic interference measures and large-capacity information storage.

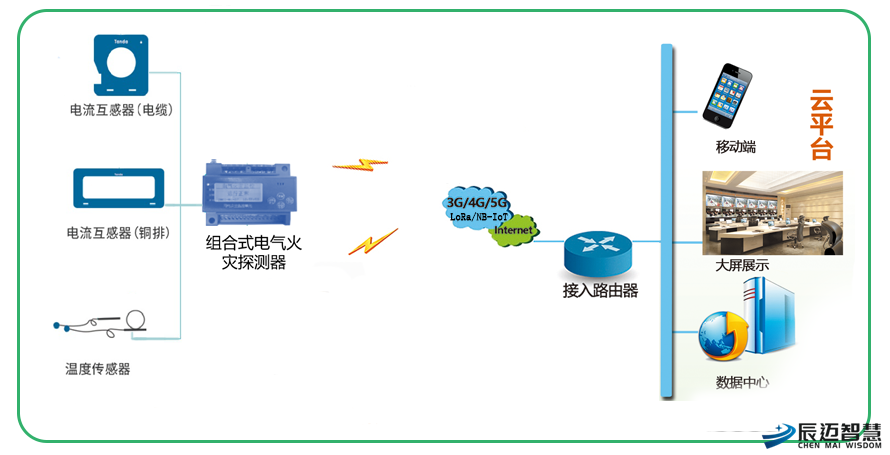

The system consists of a terminal APP, a cloud server, electrical fire monitoring equipment, multiple electrical fire monitoring detectors, and multiple electrical fire monitoring probes, forming a large-scale monitoring system. This structure enables a multi-unit, high-performance electrical fire monitoring system.
Through the electrical fire monitoring equipment, remote monitoring of electrical fire monitoring detectors can be easily realized. It also allows convenient operations on any electrical fire monitoring detector, such as real-time data query, historical data query, and parameter modification. In addition, the terminal APP enables users to monitor electrical safety anytime and anywhere.
Cloud database management, centralized monitoring and alarming, data statistics, information pushing, alarm record storage, and traceable historical data.
Real-time monitoring via app, early warning notifications, self-inspection and reporting, announcements and notices
1.Based on modern information technologies such as IoT sensing, mobile internet, cloud computing technology and big data, intelligent terminals and wireless transmission devices use intelligent sensing terminals (on-site monitoring modules, transmission modules) to conduct real-time online monitoring and statistical analysis of the main factors causing electrical fires (cable temperature, current, residual current, fault arc), and summarize them into electrical safety data to transmit to the cloud service platform in real time.
Electrical safety data includes: three-phase voltage of power supply box, three-phase current, power supply quality (three-phase unbalance degree, power supply quality qualification rate, power failure, etc.), leakage current, three-phase cable temperature, box temperature, load current (overload alarm), electric energy, fault arc, etc.
Through the analysis and judgment of stored data by the cloud platform, the potential electrical safety hazards in the dynamic operation of lines can be grasped in a timely manner, electrical hazards can be detected promptly to prevent fires, and the level of enterprise electrical safety management can be improved.
Automatic reminders for the safety status of the electrical system: multiple methods including local sound and light alarm, mobile APP remote monitoring, SMS alarm, phone notification, etc.
Through the cloud platform analyzing the relevant parameters of the electrical equipment circuit, the cause of the fault is determined to guide enterprises in carrying out treatment, so as to eliminate potential electrical fire safety hazards and fully ensure electrical safety.
The smart electricity consumption cloud platform solves the problems of electricity management and electrical safety for enterprises and institutions. Enterprise managers can grasp electrical safety data in real time through a mobile APP, providing supervision and decision-making basis for the safe production of enterprises.
Supervision departments at all levels should formulate comprehensive development plans for electrical fire monitoring, popularize knowledge on electrical fire prevention, and comprehensively improve the electrical fire prevention and control capabilities of the whole society.
1.Cloud Service Platform - 24/7 Online Monitoring and Management

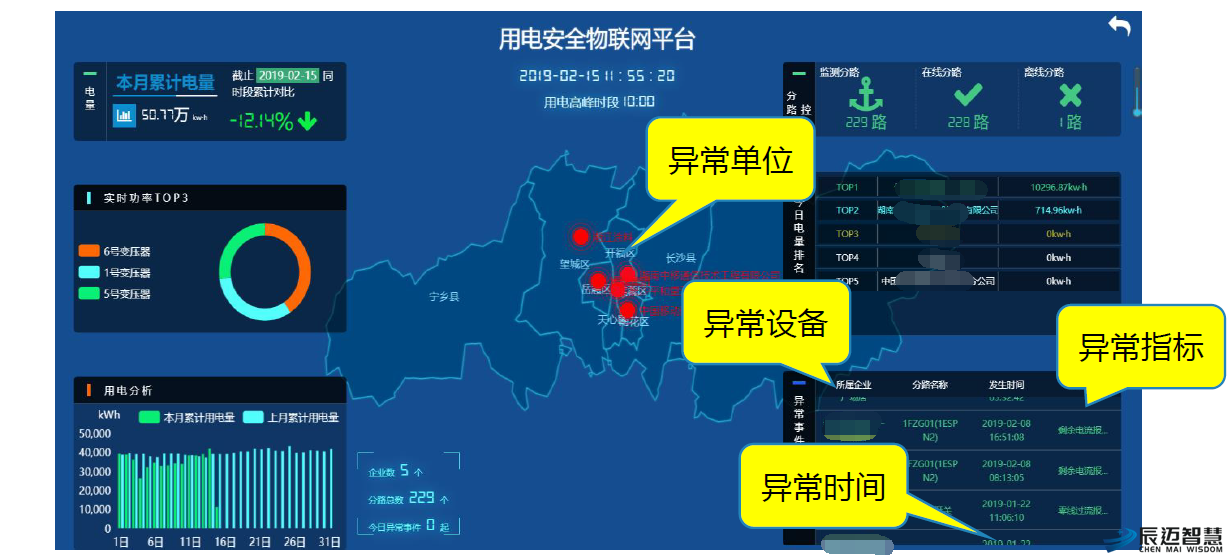

Based on the safety electricity-sensing terminals installed in power distribution cabinets (boxes), it monitors power supply and consumption parameters in real time, and uploads the data to the smart safety electricity cloud platform via IoT transmission technology. Through the cloud platform of the smart electrical fire cloud monitoring system, customers can check the electrical safety status of their enterprises at any time and from anywhere 24/7 via a mobile App or Web client. For any abnormalities detected, the platform will promptly alert relevant safety personnel to potential safety hazards through early warning methods.

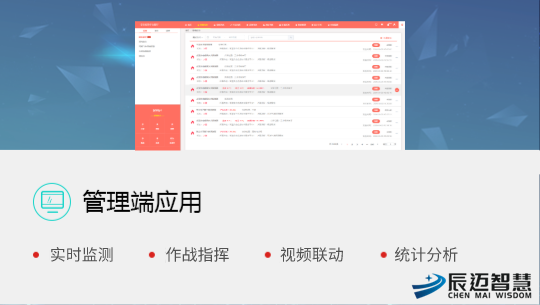

2.Local Supervision System - Sound and Light AlarmOnce a safety abnormality occurs in the monitoring value of the on-site power distribution cabinet (box), the local alarm is triggered to issue a sound and light alarm. Simultaneously, alarm prompts are sent through the cloud platform supervision system’s mobile APP and Web client. Multiple methods are used to remind on-duty personnel to conduct maintenance. The intelligent electrical safety hazard supervision service system has a user permission management function, allowing administrators of corresponding secondary units to only view the real-time electrical safety data of their own units. Through the local workstation, on-duty personnel can fully understand the electrical consumption status of the units under their jurisdiction. Once an abnormality is prompted, they can quickly locate the position and circuit for timely handling.

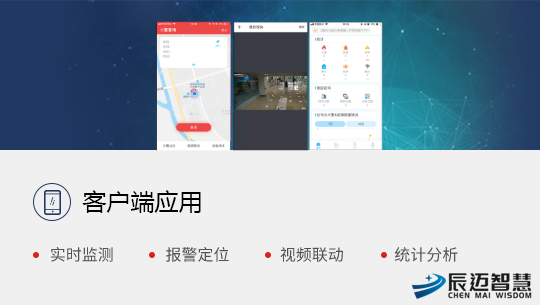

3.Mobile APP - Mobile Duty Room for Electrical SafetyBy logging into the mobile APP with an authorized account and password, customers can check the electrical safety status of their enterprises at any time and from anywhere via a mobile phone or internet-connected computer, and view the safety status of the electrical system on their mobile devices.
4.SMS Alarm - Preventing Fires Before IgnitionIn the "User Management" settings interface of its supervision system, an electricity-consuming unit can easily set the mobile phone numbers that will receive SMS alarms. Through this setting, alarm information can be sent to the mobile phones of the enterprise owner and the person in charge of safety management. With the SMS alarm function, relevant responsible persons can be informed of electrical abnormalities in the first place.

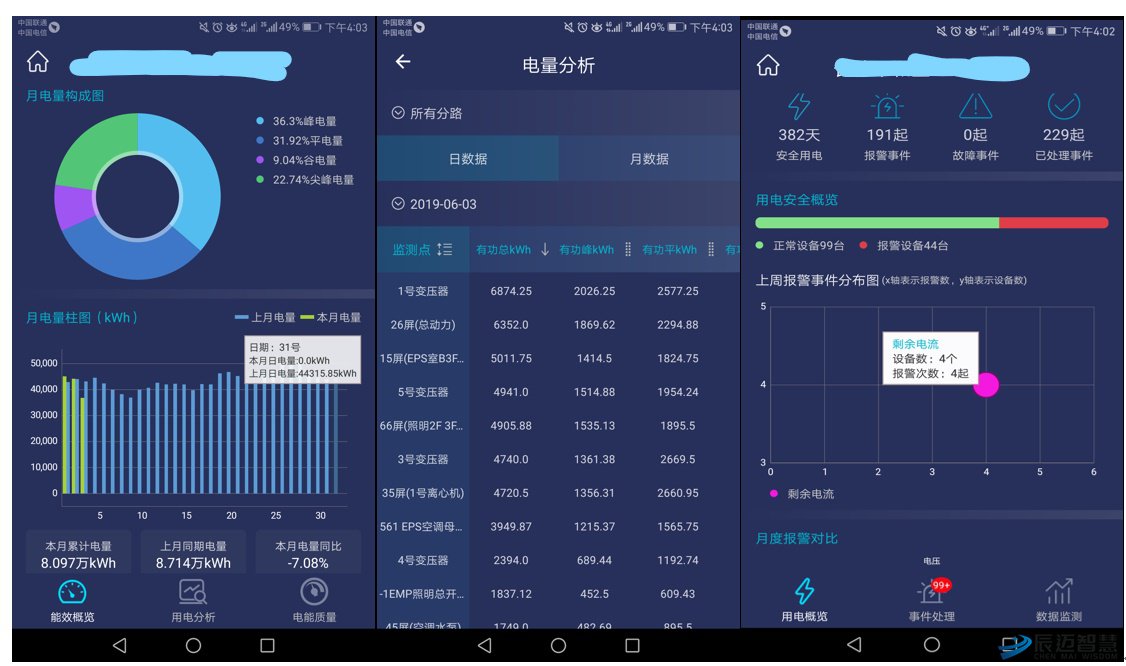

The intelligent electrical safety hazard supervision service system also provides functions such as alarm records, historical trends, and report analysis. The platform regularly counts the current period's electricity consumption data every week and generates inspection reports. Users can log in to the platform to view the reports at any time. They can also, according to their own choices, view the historical curves of a certain parameter of a single circuit (such as line temperature, leakage current, etc.), conduct comparative analysis on the operating status of several important load circuits, check the overall electricity load on a daily, monthly, and annual basis, perform peak-valley analysis of daily electricity consumption and daily power, and obtain the analysis of alarm causes for abnormal alarm circuits.
Effectively prevents fire occurrence: Through intelligent fire prevention monitoring terminals, it can monitor various indicator data of electrical circuit operation more comprehensively and accurately.
Combines with mobile network and Internet to realize long-distance monitoring: By connecting with mobile 4G network and Internet, the smart safety electricity management system breaks through the internal connection limitations of traditional monitoring equipment and realizes real long-distance electrical fire monitoring and management.
Greatly saves labor costs: With automatic monitoring equipment and wireless transmission, manual participation in the monitoring and early warning of electrical circuits is basically not required for fire monitoring and alarming.
Significantly improves the real-time performance of fire early warning: Monitoring equipment can automatically issue early warnings at the first moment when abnormalities occur in electrical circuits to prevent the situation from worsening.
Enables remote supervision of electrical circuits: Relying on the real-time and wireless data transmission of monitoring equipment and the support of background software systems, the smart safety electricity management system allows supervisors to grasp the operation status of electrical circuits in a timely manner without being on the front line.
Comprehensive fully automated process: It realizes a fully automated solution for electrical fire control through links such as intelligent monitoring, wireless transmission, and automatic analysis.
This electrical fire monitoring system can be widely applied to buildings with high population density, such as hospitals, schools, telecommunications buildings, financial buildings, dispatching buildings, radio and television buildings, office buildings, and high-rise residential buildings. It is also suitable for places with difficult evacuation, including stations, airports, subways, industrial and mining enterprises, gymnasiums, exhibition centers, theaters, commercial buildings, museums, hotels, comprehensive buildings, and national key fire-fighting units.
